NEO K1.0 13W

Deep Recessed Downlight

The NEO K1.0 13W Downlight features a deep recessed design for low glare. Available with matt white or black trim, and multiple beam angles. The versatile NEO downlight range is equipped with high output CRI90 Citizen COB LEDs. NEO is the perfect solution for your next high-end commercial project.

Enquire about this product Data Sheet

Specifications

Material Specifications
MaterialAluminum, with Powdercoat
ColourMatt White / Matt Black
Dimensions100mm (Face Dia) x 104mm (H)
Cutout90mm Dia
Warranty5 Year Replacement
BenefitsDeep Recessed, for Anti-Glare

Electrical Specifications
Power Supply18W Dimtronic Constant Current Driver, 350mA
DimmingPhase-Dim as Standard, DALI Available
Connection MethodComplete with Australian Approved 2-Pin Plug and lead
Thermal TestingCompliant with CA90 Classification
Australian StandardsApproved with RCM

Optic Specifications
Light Source13W Citizen LED COB, with Reflector
Delivered LumensUp to 1,587lm
CRIRa >90
Beam Angle60° / 36° / 22°
Colour DeviationSDCM ≤ 3
Calculated L70 (Hours)>115,000 Hrs

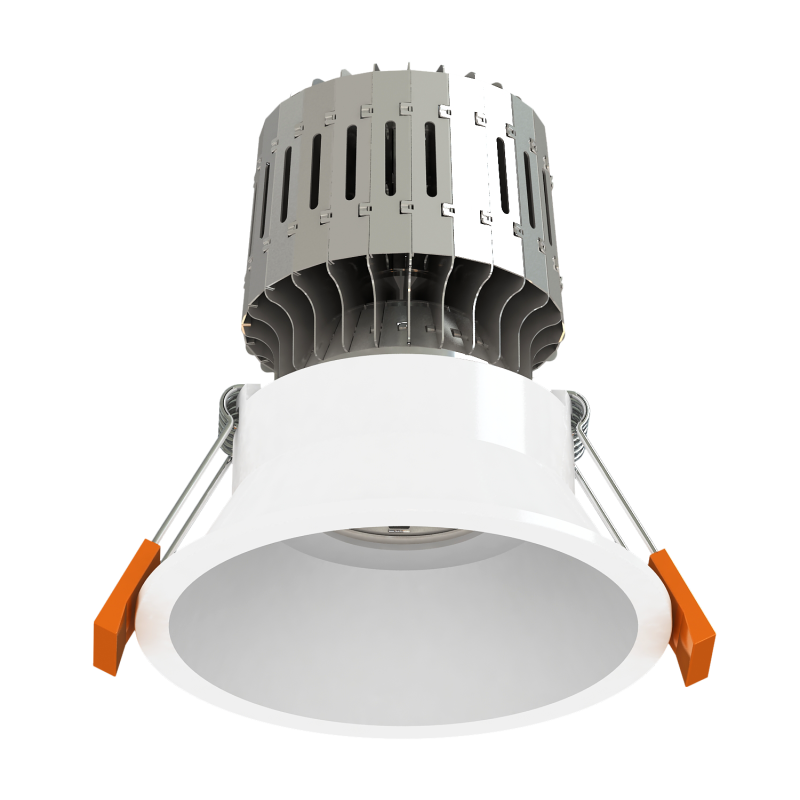

NEO K1.0 White

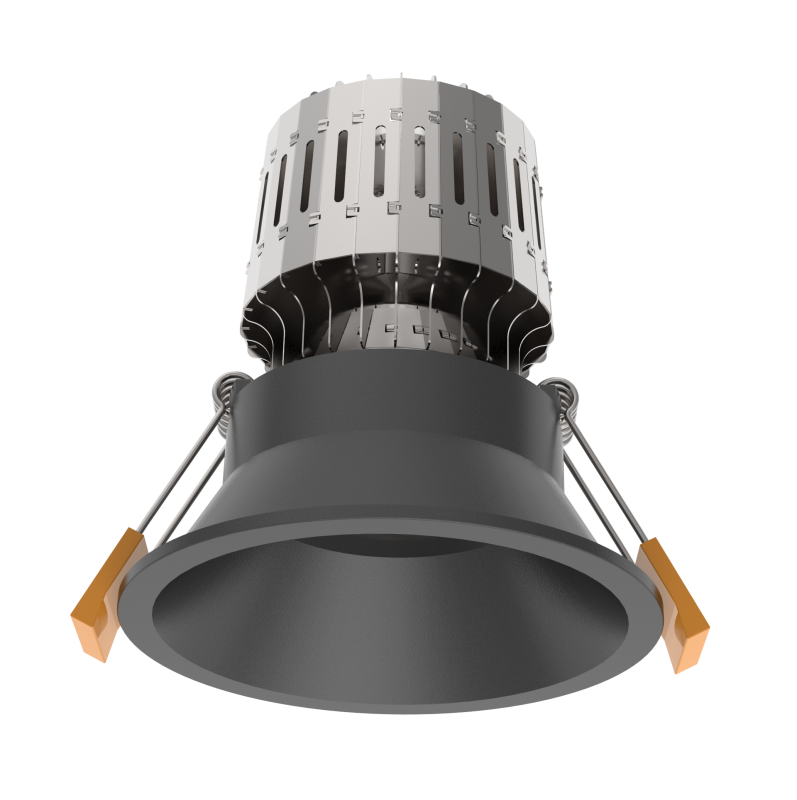

NEO K1.0 13W Black

Neo K1.0 Mount Ring Image

Variations

K1.0-13-WH-60-3K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, White, 60°, Phase Dim, 3000K
K1.0-13-BK-60-3K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, Black, 60°, Phase Dim, 3000K
K1.0-13-WH-36-3K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, White, 36°, Phase Dim, 3000K
K1.0-13-BK-36-3K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, Black, 36°, Phase Dim, 3000K
K1.0-13-WH-22-3K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, White, 22°, Phase Dim, 3000K
K1.0-13-BK-22-3K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, Black, 22°, Phase Dim, 3000K
K1.0-13-WH-60-4K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, White, 60°, Phase Dim, 4000K
K1.0-13-BK-60-4K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, Black, 60°, Phase Dim, 4000K
K1.0-13-WH-36-4K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, White, 36°, Phase Dim, 4000K
K1.0-13-BK-36-4K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, Black, 36°, Phase Dim, 4000K
K1.0-13-WH-22-4K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, White, 22°, Phase Dim, 4000K
K1.0-13-BK-22-4K NEO K1.0 13W Downlight, Deep Recessed Fixed Trim, Black, 22°, Phase Dim, 4000K
