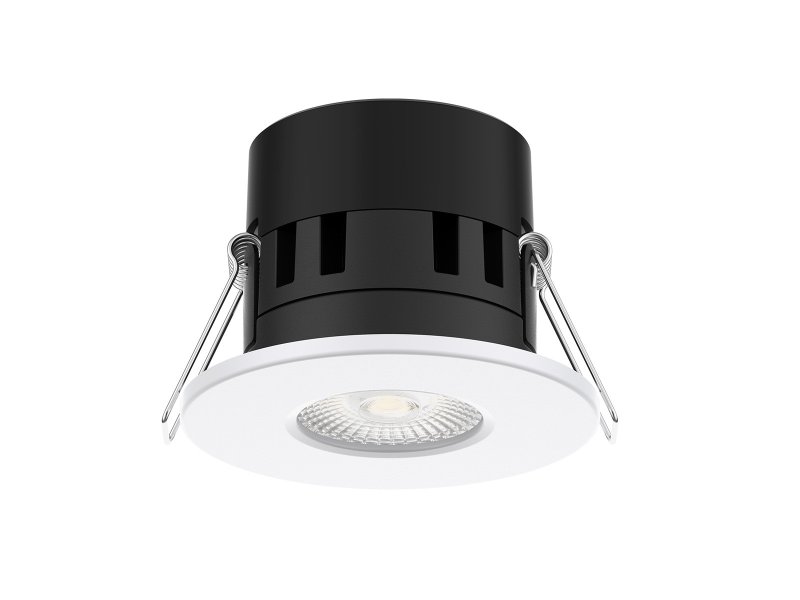

ORIENT 6W
Fire Rated Downlight
ORIENT 6W Fire Rated Downlight. 60mm low profile downlight. 3CCT changeable for ultimate versatility. Comes with a quick connect terminal. IC approved, can be covered directly under insulation material.
- Material Specifications
- MaterialAluminium Housing, PC optic
- Ingress ProtectionIP65 (Below Ceiling)
- Ingress ProtectionIP20 (Inside Ceiling)
- Dimensions85mm(Dia) x 60mm(H)
- Cutout68-75mm (Dia)
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyIntegrated, Phase Dim
- Input Voltage240V
- Input Current< 0.05A
- Operating Temperature (Ta)-20°C to +40°C
- ProtectionShort-Circuit, Over-Voltage, Over-Temperature
- Optic Specifications
- Light Source6W, SMD2835
- Beam Angle60°
- Delivered Lumens580- 650lm
- CRI> 80Ra
- Reported L70 (Hours)> 54,000 Hrs
Variations
- LC2904 ORIENT 6W Fire Rated Downlight, White, 60°, Phase Dim, Tri-Colour, 580-680lm
