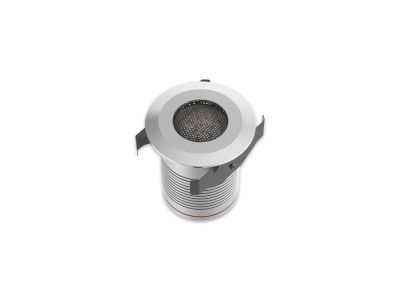

NEO-G Micro 3W
IP67 Ground Light with Single Emission Cover Plate
The NEO-G Micro 3W LED Ground Lights are marine grade quality, covered with a five year warranty. Capable of being completely submerged, these lights are great for pools, driveways, ponds and decks. Can be installed in concrete or gravel. 8mm tempered glass lens supports 1000kg drive over, manufactured with high quality anodised aluminium outer casing. These LED recessed fittings have a stainless steel (316L) front face protecting them from water including salt water and general corrosion.
- Material Specifications
- HousingDie-cast aluminium with tempered glass and type 316 stainless steel cover
- MountingRecessed In-ground (installation tube included)
- Dimensions55mm (Dia) x 95mm (H)
- Cutout48mm Dia (51mm with blockout)
- Ingress ProtectionIP67
- Impact RatingIK10
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyIP67 External, Sold Separately
- DimmingNon-Dim
- Input Voltage12-24V DC constant voltage
- Connection Method2-core double-insulated cable
- Max. Loading20 units per power feed
- Max Distance From Power Supply10 metres recommended
- Optic Specifications
- Light Source3W CREE LED
- Delivered Lumens120lm
- Beam Angle40°
- Rated Lifetime (L70B20)50,000 Hrs
- LC5085 NEO-G Micro 3W Ground Light with Single Emission Cover Plate, 40°, 3000K
Data Sheet Whether it be in a deck or along a pathway, our exterior LED In-Ground Lights are perfect for illuminating your outdoor area at night. With a sleek type 316 stainless steel cover and tempered glass, the NEO In-Ground Lights are durable and remain unobtrusive in the daytime.
