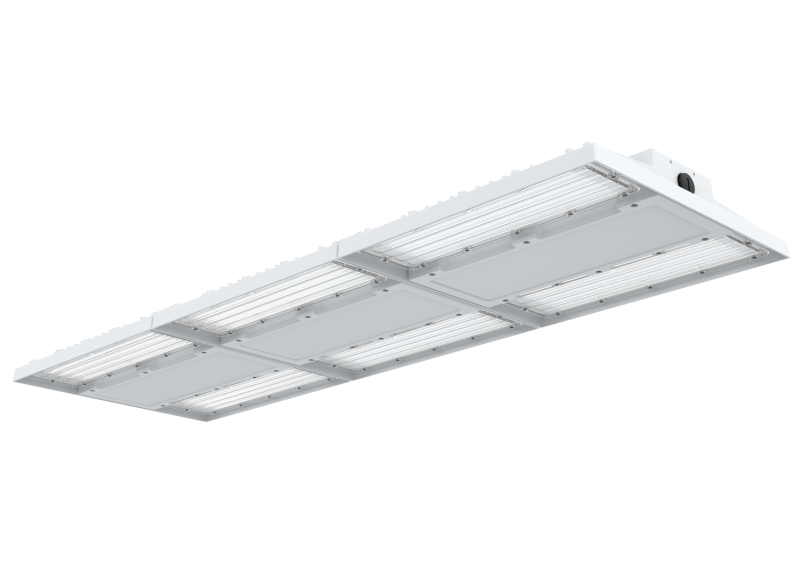

HUME 480W
Linear Highbay
The HUME 480W Linear Highbay is a major advancement in replacing fluorescent aisle light products found in today's warehouse lighting sector. It is the new benchmark in linear lighting surpassing traditional light sources in terms of versatility, energy efficiency and weather/vandal resistance.
Using our HUME Linear Highbay is the most efficient way of lighting narrow aisles, using our precisely designed asymmetric optics.
The standard model is suspension-mounted. Other options include a Ceiling-Mount, and a Ceiling-Mount with rotatable bracket.
- Material Specifications
- MaterialAluminium Housing
- FinishWhite Anti-Corrosive Powder Coat
- Dimensions1099mm(L) x 365mm(W) x 64mm(H)
- Ingress ProtectionIP66
- Impact RatingIK10
- Weight12.1kg
- Warranty5 Year Replacement
- Electrical Specifications
- Input Voltage240VAC
- Power Supply2 x 240W, Constant Current
- Operating Temperature (Ta)-30°C to +50°C
- ProtectionSurge - 6KV line-line, 10KV line-earth
- Connection MethodAustralian 3-Pin Plug + 1.2m Lead
- Input Voltage240V
- Optic Specifications
- Light SourceEMC3030, 480W LED
- OpticsPC Lens
- Delivered LumensUp to 76,800lm
- EfficacyUp to 160 lm/w
- CRI>70Ra
- Calculated L70 (Hours)157,000hrs
- Calculated L80 (Hours)96,000hrs
Variations
- LC2330-145x70 HUME 480W Linear Highbay, White, 145x70°, Non-Dim, 4000K
- LC2330D-145x70 HUME 480W Linear Highbay, White, 145x70°, DALI, 4000K
