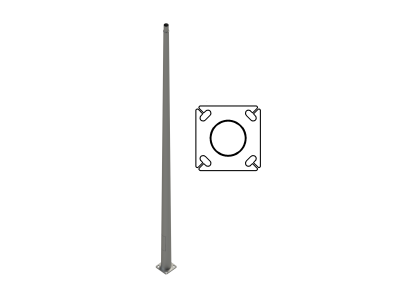

Light Pole 5.5m
Tapered Round
Specifically designed to provide a stable platform for Decrolux lighting fixtures our range of pipe poles excel at withstanding extreme winds and other weather conditions. Available in custom heights between 4 and 8 metres, our pipe poles are fabricated to ensure increased stability and uninterrupted lighting no matter their height.
- Material Specifications
- MaterialMild Steel, Hot Dip Galvanised
- FinishGalv, or Powder Coat
- Max. Top Weight60kg
- Ultimate Base Moment6.5kNm
- Ultimate Base Shear1.3kN
- Pole Weight57Kg
- Dimensions
- Dimensions76mm (Dia) x 5,500mm (H)
- Base Plate Dimensions233mm x 233mm
- Hold Down Bolts4 x M20 @ 233 PCD
- Spigot Size60mm/ 76mm
Variations
- HTR055-60 Tapered Round Pole 5.5m Light Duty, 60mm Spigot, Galv.
- HTR055-60-PC Tapered Round Pole 5.5m Light Duty, 60mm Spigot, Textura Black
- HTR055-76 Tapered Round Pole 5.5m Light Duty, 76mm Spigot, Galv.
- HTR055-76-PC Tapered Round Pole 5.5m Light Duty, 76mm Spigot, Textura Black
