ASTON MK-II 30W

Recessed Profile

The ASTON MK-II Linear Series are a sleek, modern style perfect for commercial architecture. Depending on the height and type of ceiling, you can choose to either surface mount or suspend the linear profiles. A third, slightly less common mounting method, is to recess the lights directly into the ceiling.

The ASTON 30W Linear Recessed Profile is used for modern areas to achieve a minimal appearance. Smooth lines give a subtle, crisp look. The MK-II version features a low-glare, prismatic diffuser.

Ceiling Recessed     IP44     Class I Earth Symbol
  • Material Specifications
  • Material1.0mm Aluminium Housing, with Opal Acrylic Diffuser
  • FinishWhite or Black Powdercoat
  • Ingress ProtectionIP44

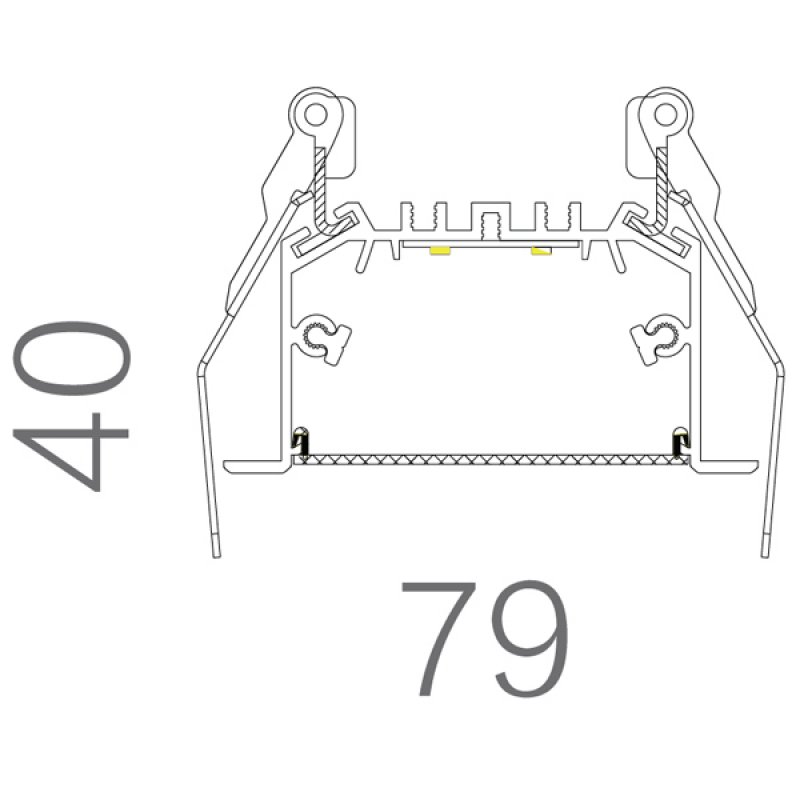

  • Dimensions1121mm(L) x 79mm(W) x 40mm(D)
  • Cutout71mm(W)
  • Warranty5 Year Replacement
  • Electrical Specifications
  • Power SupplyBOKE LED Driver
  • Input Voltage240V
  • Optic Specifications
  • Light SourceSamsung 2835 SMD
  • LED Wattage27W/m
  • Nominal Lumens3,270lm
  • Efficacy109lm/W
  • CRI> 80Ra
  • Beam Angle85°
  • Colour DeviationSDCM ≤ 3
  • Reported L70 (Hours)> 54,000 Hrs

Variations

  • LC8523B ASTON MK-II 30W Recessed 1121mm, Black, 85°, Non-Dim, 3000K
  • LC8523BD ASTON MK-II 30W Recessed 1121mm, Black, 85°, DALI, 3000K
  • LC8523W ASTON MK-II 30W Recessed 1121mm, White, 85°, Non-Dim, 3000K
  • LC8523WD ASTON MK-II 30W Recessed 1121mm, White, 85°, DALI, 3000K
  • LC8524B ASTON MK-II 30W Recessed 1121mm, Black, 85°, Non-Dim, 4000K
  • LC8524BD ASTON MK-II 30W Recessed 1121mm, Black, 85°, DALI, 4000K
  • LC8524W ASTON MK-II 30W Recessed 1121mm, White, 85°, Non-Dim, 4000K
  • LC8524WD ASTON MK-II 30W Recessed 1121mm, White, 85°, DALI, 4000K
