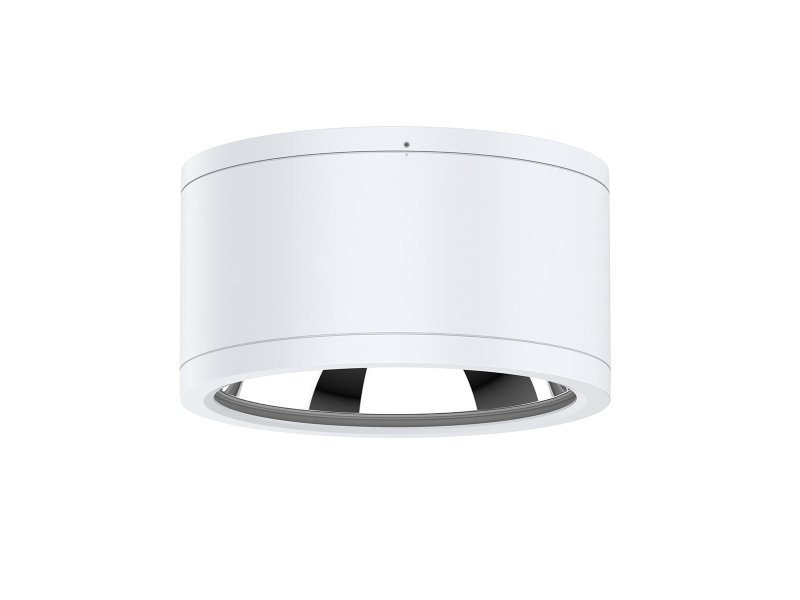

DIPLOMAT 30W
Round Surface Can Light
The DIPLOMAT Large surface mounted ceiling light features an COB LED chip that ensures efficient illumination. With its aluminium profile, the light offers excellent thermal dissipation, allowing for prolonged use without overheating. The light also boasts an isolated flicker-free non-dimmable driver solution, ensuring a stable and reliable working performance. Its IP65 rating makes it suitable for outdoor applications, while its versatility extends to commercial and residential settings such as offices, supermarkets, shops, schools, hotels, restaurants, workshops, warehouses, and homes.
- Material Specifications
- MaterialDie-Cast Aluminium with PC Lens/Reflector+Tempered Glass
- ColourWhite RAL9016 / Black RAL9005
- Dimensions160mm (Dia) x 110mm (H)
- Ingress ProtectionIP65
- Impact RatingIK06
- Warranty5 Year Replacement
- Electrical Specifications
- Input Voltage240V
- Power SupplyIntegral Driver
- Connection MethodTerminal Block in base
- Operating Temperature (Ta)-20°C to 40°C
- Optic Specifications
- Light SourceCitizen LED
- Correlated Colour TemperatureTri-Colour: 3000K / 4000K / 5000K
- Delivered Lumens2900 - 3200lm
- CRI> 80Ra
- Colour DeviationSDCM ≤ 3
- Reported L70 (Hours)> 50,000 Hrs
Variations
- LC3548-60-W-3CCT DIPLOMAT 30W Surface Mount Can Light, White, 60°, Non-Dim, 3CCT, 2900lm
- LC3548-60-B-3CCT DIPLOMAT 30W Surface Mount Can Light, Black, 60°, Non-Dim, 3CCT, 2900lm
