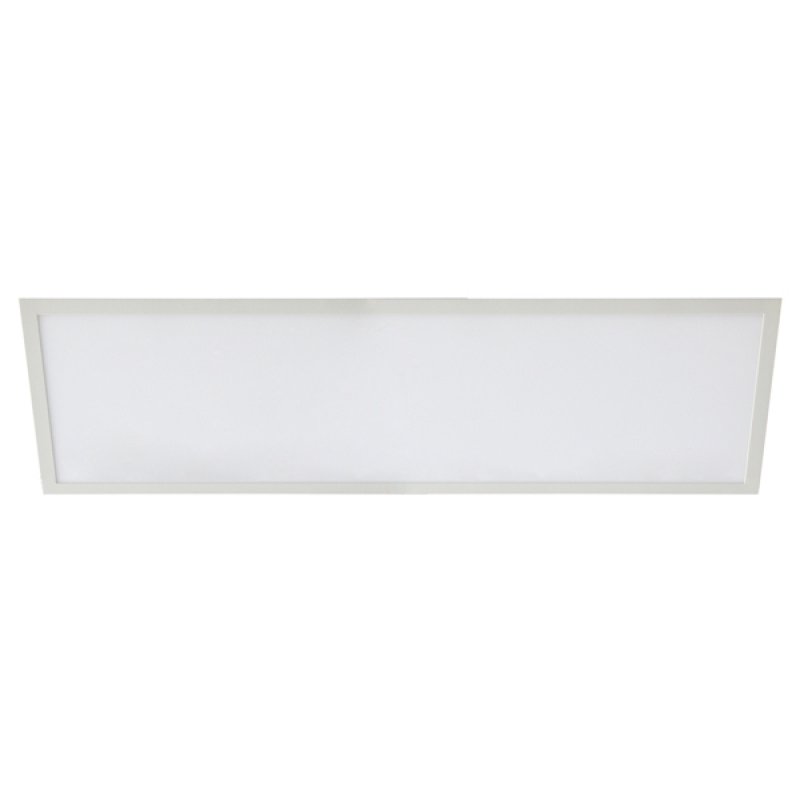

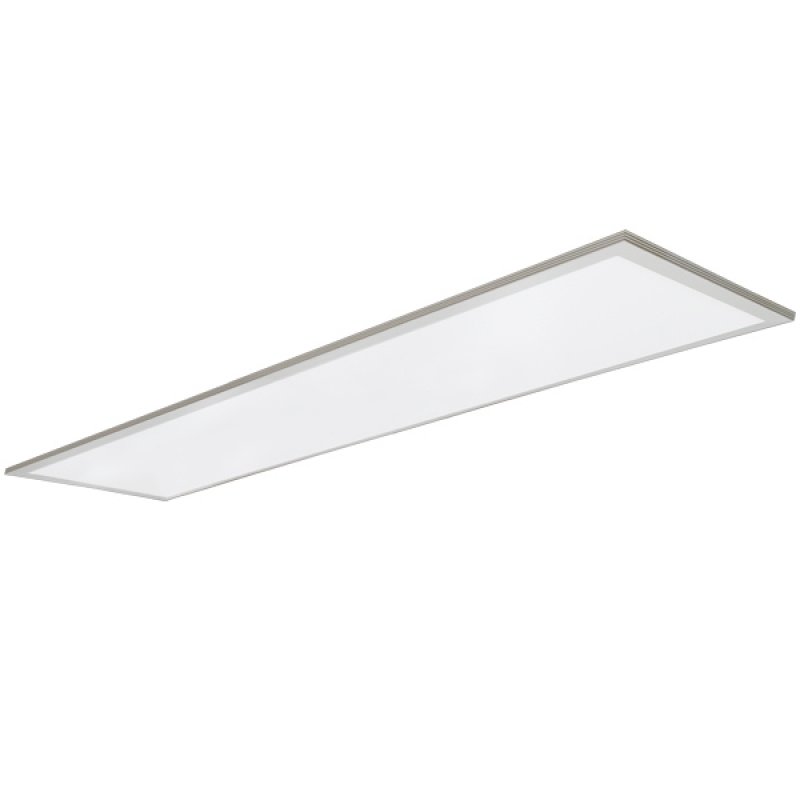

CREST 24W

UGR<19 Panel Light 1200x300

The CREST 24W Panel Light 1200x300 is a high performing panel light designed with a honeycomb diffuser which perfects the balance between light distribution, low glare, and visual appeal. Available in emergency and dimmable options. Superior Optical Design, Quick + Easy Retrofit, Flicker + Glare Free, Engineered to Perfection.

Ceiling Recessed     IP44     IC-4 Luminaire     Class II Double Insulate Symbol     Flicker Free
  • Material Specifications
  • MaterialAluminium Edgefold Back Sheet
  • FinishWhite
  • Dimensions1195mm (L) x 295mm (W) x 10mm (D)
  • Ingress ProtectionIP44
  • AccessoriesSurface Mount Kits, Plaster Recessed Kits, Suspension Kits
  • Weight3kg
  • Warranty5 Year Warranty
  • Electrical Specifications
  • Power SupplyNon-Dim Driver (Flicker Free)
  • Input Voltage240V
  • Connection MethodAustralian 2-Pin Plug & 1.2m Lead
  • Operating Temperature (Ta)-20°C to +45°C
  • Optic Specifications
  • OpticsPMMA LGP
  • Delivered LumensUp to 3,416lm
  • CRIRa 80 (Ra 90 available for project orders)
  • Calculated L70 (Hours)>170,000 Hrs
  • Calculated L80 (Hours)>110,000 Hrs
  • Calculated L90 (Hours)>53,000 Hrs
  • Light Source2 Sides Edge-lit

Variations

  • LC7211 CREST 24W Anti-Glare Panel Light 1200x300, 100°, Non-Dim, 3000K, 3,192lm
  • LC7212 CREST 24W Anti-Glare Panel Light 1200x300, 100°, Non-Dim, 4000K, 3,416lm
  • LC7212R CREST 24W Anti-Glare Panel Light 1200x300, 100°, Non-Dim, 4000K, CRI >90, 2,903lm
