EMPRESS 13W
Recessed Gimbal Downlight
The EMPRESS 13W gimbal downlight is available in DALI dimmable, constructed with a thermal heatsink included to ensure the downlight disperses any heat keeping it cool to touch. Used by builders, developers and a favourite with electricians.
EMPRESS 13W LED gimbal Downlight adopts a high lumen COB LED, and PMMA diffuser with even light output. DALI dimmable version has shown great popularity with excellent dimming effect.
Verified by Techlume Australia on 23/03/2023
- Material Specifications
- MaterialHigh Grade Aluminum + Reflector
- Adjustment30° gimbal

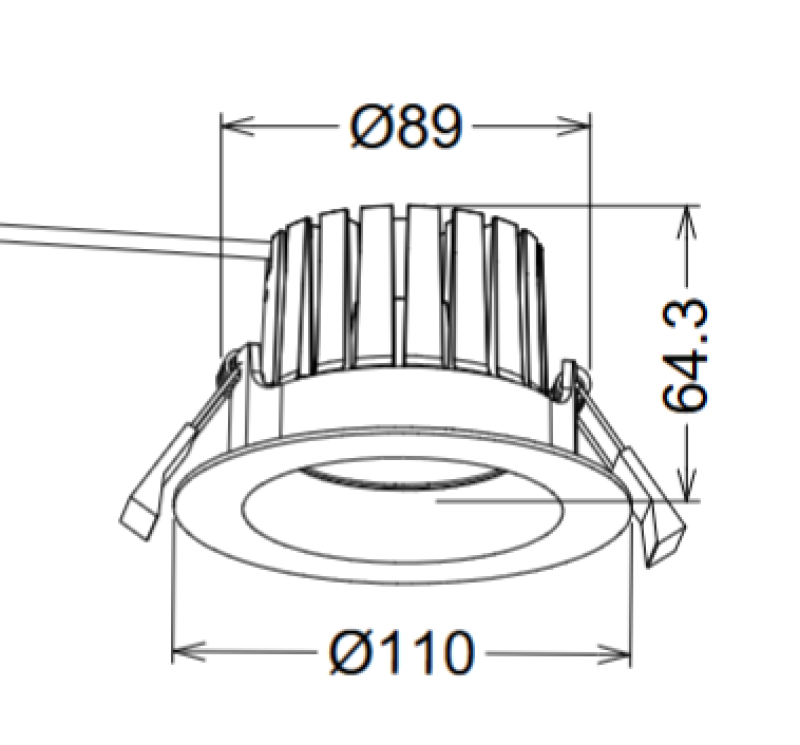

- Dimensions110mm Face Dia x 50mm (H)
- Cutout90mm (Dia)
- ColourMatt White (Black & Silver available for project orders)
- Ingress ProtectionIP65
- Impact RatingIK06
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyDimmable, 23-40VDC 280mA
- System Watts11.4W - 12.1W
- Input Voltage240V, 50/60Hz
- Operating Temperature (Ta)-20°C to +45°C
- Thermal TestingCompliant with IC Classification
- ProtectionVoltage Overload, Temp Overload, Short Circuit
- Connection MethodAustralian Plug & 1.2m Lead
- Optic Specifications
- Light SourceCREE XLamp® CXA-1512
- Delivered Lumens1,256lm (3000K)
- Delivered Lumens1,394lm (4000K)
- EfficacyUp to 115.4 lm/W
- CRIRa 83
- Beam Angle60° (36° Available for Project Order)
- Calculated L70 (Hours)L70B50 = >60,000 Hrs
- Calculated L80 (Hours)L80B50 = > 60,000 Hrs
- Calculated L90 (Hours)L90B50 = > 56,000 Hrs
Variations
- LC3592 EMPRESS 13W Gimbal Downlight, White, 60°, Phase Dim, 3000K, 1,256lm
- LC3592B EMPRESS 13W Gimbal Downlight, Black, 60°, Phase Dim, 3000K, 1,256lm
- LC3592D EMPRESS 13W Gimbal Downlight, White, 60°, Dali, 3000K, 1,256lm
- LC3593 EMPRESS 13W Gimbal Downlight, White, 60°, Phase Dim, 4000K, 1,394lm
- LC3593B EMPRESS 13W Gimbal Downlight, Black, 60°, Phase Dim, 4000K, 1,394lm
Resources
- Data Sheet
-
LC3592
-
LC3593
