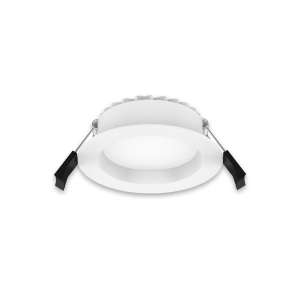

EMPRESS 15W
Recessed Fixed Downlight
The EMPRESS 15W Fixed downlight is an Architectural White Downlight, constructed with a thermal heatsink included to ensure the downlight disperses any heat keeping it cool to touch. Used by builders, developers and a favourite with electricians.
EMPRESS 15W Fixed LED Down light adopts a high lumen COB LED, and PMMA diffuser with even light output. DALI dimmable version has shown great popularity with excellent dimming effect.
Verified by Techlume Australia on 27/03/2023
- Material Specifications
- MaterialHigh Grade Aluminum + Reflector
- Dimensions110mm Face Dia x 65mm (H)
- Cutout90mm (Dia)
- ColourMatt White (Black & Silver available for project orders)
- Ingress ProtectionIP65
- Impact RatingIK06
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyDimmable, 23-40VDC 350mA
- System Watts15.0W
- Input Voltage240V, 50/60Hz
- Operating Temperature (Ta)-20°C to +45°C
- Thermal TestingCompliant with IC Classification
- ProtectionVoltage Overload, Temp Overload, Short Circuit
- Connection MethodAustralian Plug & 1.2m Lead
- Optic Specifications
- Light SourceCREE 15W COB LED
- Delivered Lumens1,557lm (3000K)
- Delivered Lumens1,556lm (4000K)
- EfficacyUp to 104.1 lm/W
- CRI> Ra 82
- Beam Angle60° (36° Available for Project Order)
- Reported L70 (Hours)L70B50 = >60,000 Hrs
- Calculated L80 (Hours)L80B50 = > 60,000 Hrs
- Calculated L90 (Hours)L90B50 = > 56,000 Hrs
Variations
- LC3574 EMPRESS 15W Fixed Downlight, White, 60°, Phase Dim, 3000K, 1,557lm
- LC3574B EMPRESS 15W Fixed Downlight, Black, 60°, Phase Dim, 3000K, 1,557lm
- LC3575 EMPRESS 15W Fixed Downlight, White, 60°, Phase Dim, 4000K, 1,556lm
- LC3575B EMPRESS 15W Fixed Downlight, Black, 60°, Phase Dim, 4000K, 1,556lm
Resources
- Data Sheet
-
LC3574
-
LC3575
