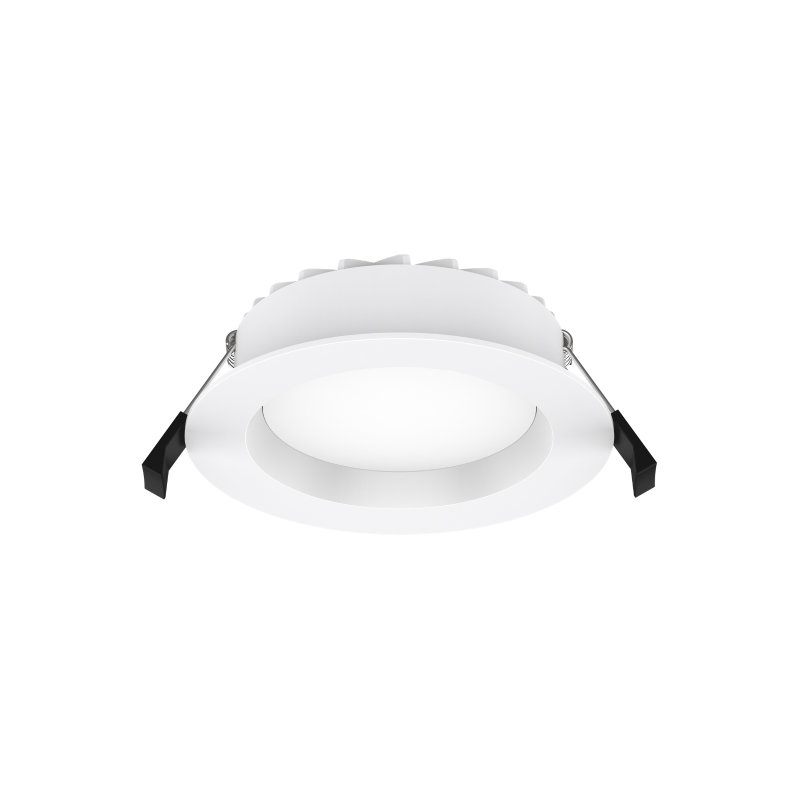

KARGO 15W
LED Recessed Downlight 120mm
The KARGO 15W downlight is phase dimmable, constructed with a thermal heatsink included to ensure the downlight disperses any heat keeping it cool to touch. Used by builders, developers and a favourite with electricians.
KARGO 15W LED Downlight adopts a high lumen SMD LED, and PMMA diffuser with even light output.
Verified by Techlume Australia on 28/07/2023
- Material Specifications
- MaterialHigh Grade Aluminium + PC Reflector
- ColourMatt White (RAL9016)

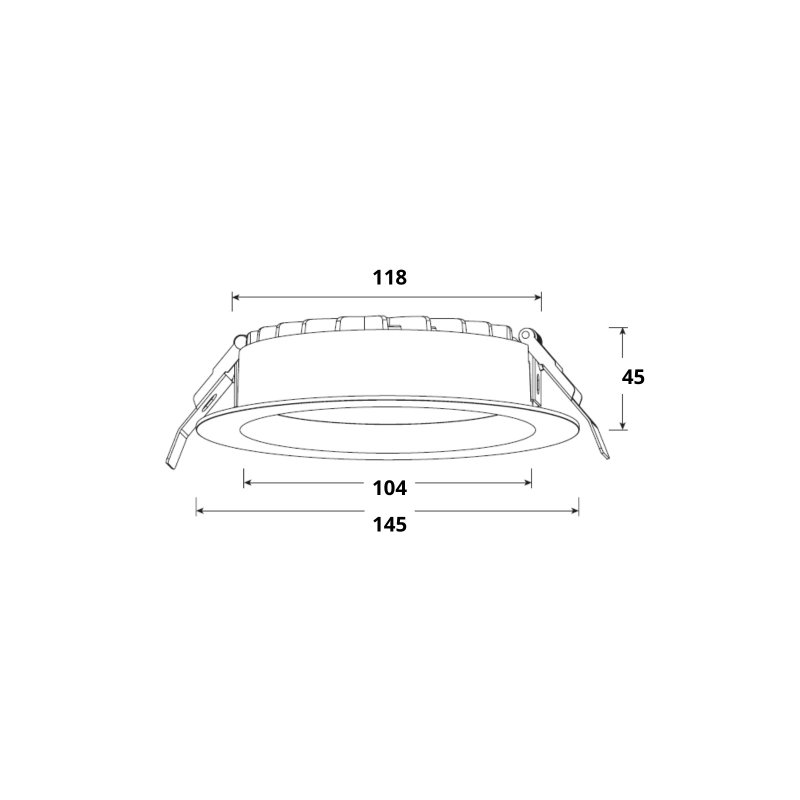

- Dimensions145mm Face Dia x 45mm (H)
- Cutout120mm (Dia)
- Ingress ProtectionIP54
- Impact RatingIK06
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyRemote Driver 300mA, Phase Dim
- System Watts14.1W - 15.3W
- Thermal TestingCompliant with IC-4 Classification
- Operating Temperature (Ta)-20°C to +45°C
- Input Voltage240V, 50/60Hz
- Connection MethodAustralian 2-Pin Plug & 0.6m Lead
- Optic Specifications
- Light Source15W SMD 2835 LED
- Delivered Lumens1,286lm (3000K)
- Delivered Lumens1,540lm (4000K)
- Delivered Lumens1,504lm (5500K)
- EfficacyUp to 109.1lm/W
- CRIRa >82
- Beam Angle100°
- Calculated L70 (Hours)L70B50 = > 60,000 Hrs
- Calculated L80 (Hours)L80B50 = > 60,000 Hrs
- Calculated L90 (Hours)L90B50 = > 56,000 Hrs
Variations
- LC3621 KARGO 15W Downlight, White, 100°, Phase Dim, Tri-Colour
- LC3621B KARGO 15W Downlight, Black, 100°, Phase Dim, Tri-Colour
- LC3621D KARGO 15W Downlight, White, 100°, DALI, Tri-Colour
