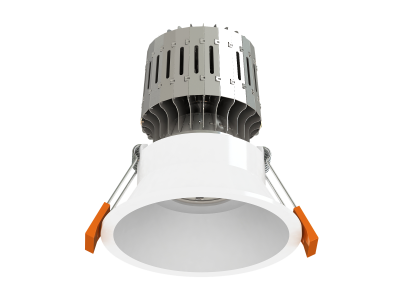

NEO K1.0 9W
Deep Recessed Downlight
The NEO K1.0 9W Downlight features a deep recessed design for low glare. Available with matt white or black trim, and multiple beam angles. The versatile NEO downlight range is equipped with high output CRI90 Citizen COB LEDs. NEO is the perfect solution for your next high-end commercial project.
- Material Specifications
- MaterialAluminum, with Powdercoat
- ColourMatt White / Matt Black
- Dimensions100mm (Face Dia) x 104mm (H)
- Cutout90mm Dia
- Warranty5 Year Replacement
- BenefitsDeep Recessed, for Anti-Glare
- Electrical Specifications
- Power SupplyActec 12W Constant Current Driver 260mA
- DimmingPhase-Dim as Standard, DALI Available
- Connection MethodComplete with Australian Approved 2-Pin Plug and lead
- Thermal TestingCompliant with CA90 Classification
- Australian StandardsApproved with RCM
- Optic Specifications
- Light Source9W Citizen LED COB, with Reflector
- Delivered LumensUp to 1,195lm
- CRIRa >90
- Beam Angle60° / 36° / 22°
- Colour DeviationSDCM ≤ 3
- Calculated L70 (Hours)>115,000 Hrs
Variations
- K1.0-9-WH-60-3K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, White, 60°, Phase Dim, 3000K
- K1.0-9-BK-60-3K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, Black, 60°, Phase Dim, 3000K
- K1.0-9-WH-36-3K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, White, 36°, Phase Dim, 3000K
- K1.0-9-BK-36-3K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, Black, 36°, Phase Dim, 3000K
- K1.0-9-WH-22-3K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, White, 22°, Phase Dim, 3000K
- K1.0-9-BK-22-3K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, Black, 22°, Phase Dim, 3000K
- K1.0-9-WH-60-4K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, White, 60°, Phase Dim, 4000K
- K1.0-9-BK-60-4K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, Black, 60°, Phase Dim, 4000K
- K1.0-9-WH-36-4K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, White, 36°, Phase Dim, 4000K
- K1.0-9-BK-36-4K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, Black, 36°, Phase Dim, 4000K
- K1.0-9-WH-22-4K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, White, 22°, Phase Dim, 4000K
- K1.0-9-BK-22-4K NEO K1.0 9W Downlight, Deep Recessed Fixed Trim, Black, 22°, Phase Dim, 4000K
