LYNE 1707 Recess
Aluminium Profile

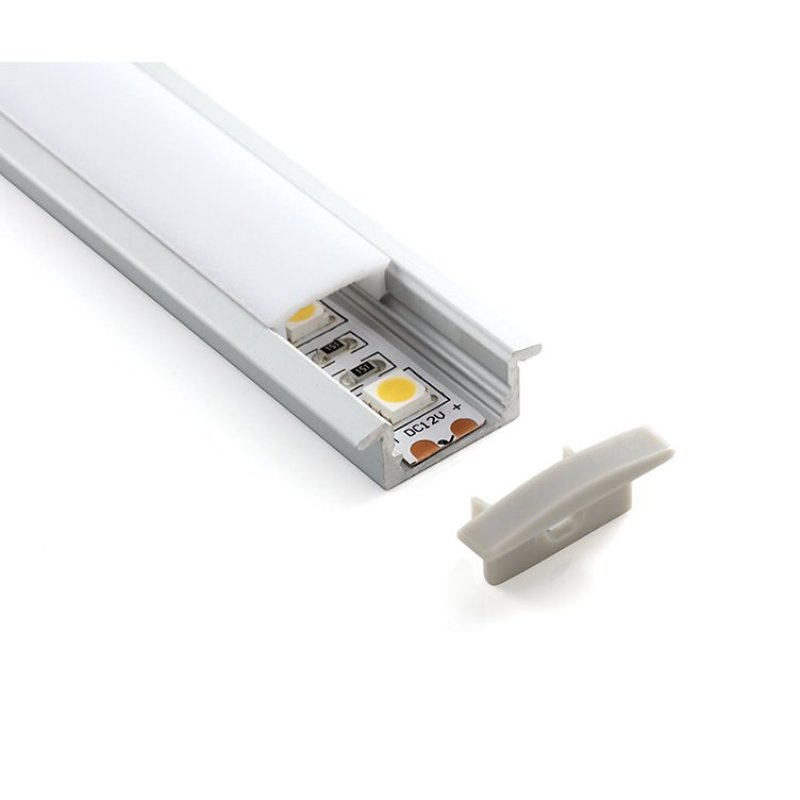

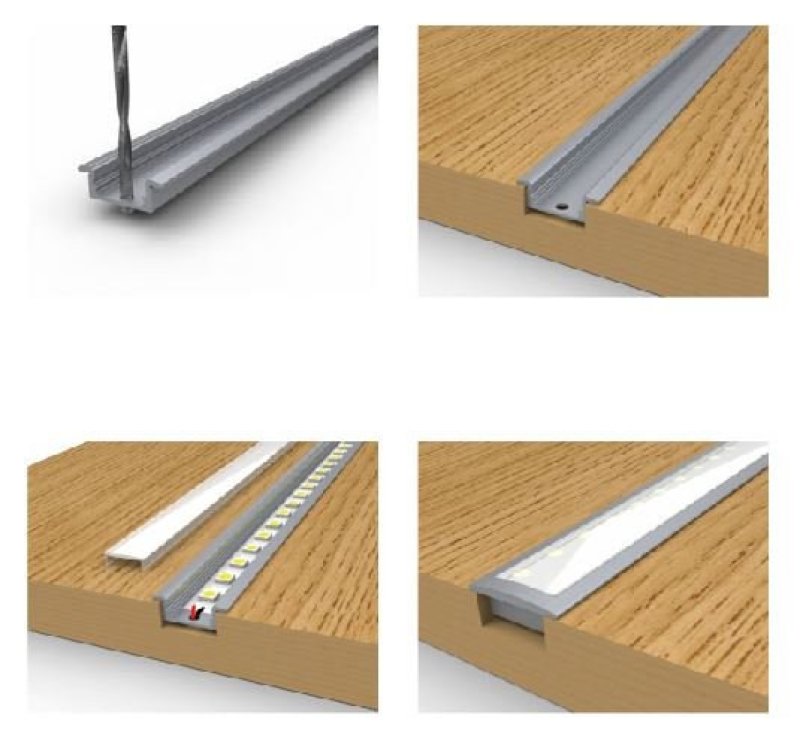

The LYNE 1707 Recess Profile is a shallow recessed extrusion with sufficient depth to reduce light hot spotting. Available in 2m lengths. Aluminium profile with snap-fit diffuser. Designed for mounting LED strip up to 12mm width. Channels on the sides of the profile allow you to clip the profile into metal clips. Plastic end caps come in pairs. One having a hole for the wires to pass through.
- Material Specifications
- MaterialAnodised Aluminium
- Ingress ProtectionIP20
- ApplicationJoinery, Feature Lighting, Task Lighting
- Dimensions17.3mm(W) x 7mm(D)
- AccessoriesEnd Caps & Mounting Clips
- Warranty3 Year Replacement
- OpticsPMMA Plastic Diffuser

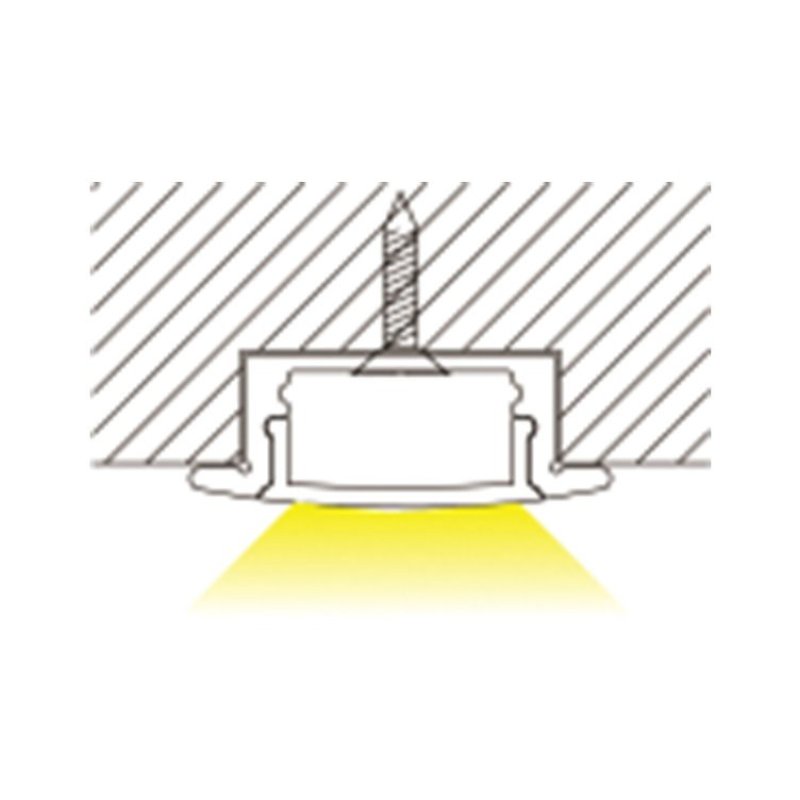

- MountingRecessed
- Light SourceINFINITY 10W LED Strip recommended
Variations
- LC9150 LYNE 1707 Recess Profile with Diffuser, Aluminium
- LC9150B LYNE 1707 Recess Profile with Diffuser, Black
