LYNE 1707 Surface

Aluminium Profile

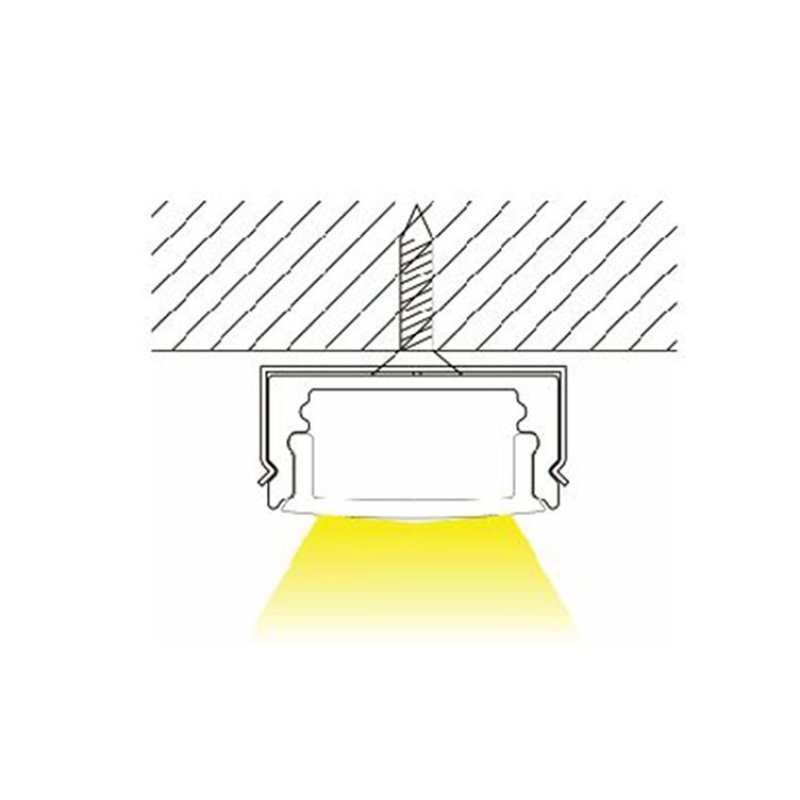

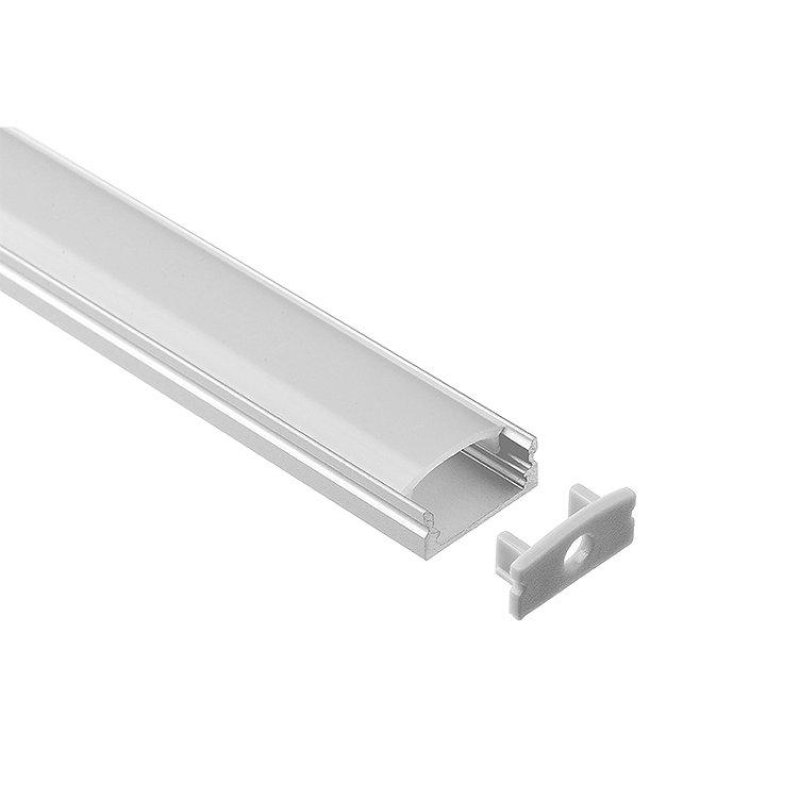

The LYNE 1707 SURFACE Profile is a surface mounted extrusion with sufficient depth to reduce light hot spotting. Available in 2m lengths. Aluminium Profile with snap-fit diffuser. Designed for mounting LED Strip up to 12mm width. Channels on the sides of the profile allow you to clip the profile into metal clips. Plastic end caps come in pairs. One having a hole for the wires to pass through. Compatible with Decrolux INFINITY LED Strip.

Ceiling Recessed     Ceiling Surface Mount     IP20
  • Material Specifications
  • MaterialAnodised Aluminium
  • FinishAluminium, Black or White
  • Ingress ProtectionIP20
  • ApplicationJoinery, Feature Lighting, Task Lighting
  • Dimensions17.3mm(W) x 7mm(D)
  • MountingSurface Mount
  • AccessoriesEnd Caps & Mounting Clips
  • Warranty5 Year Replacement
  • Optic Specifications
  • Light SourceINFINITY 6W, 10W or 14W LED Strip
  • OpticsPMMA Plastic Diffuser
  • Options

Variations

  • LC9145 LYNE 1707 Surface Profile with Diffuser, Aluminium
  • LC9145B LYNE 1707 Surface Profile with Diffuser, Black
  • LC9145W LYNE 1707 Surface Profile with Diffuser, White
