ALPHA-S 13W
Adjustable Tracklight
Track Lighting is popular in applications such as museums, art galleries, restaurants and retail spaces because of its unique flexibility in positioning the direction of the light, and the ability to add or remove fittings to achieve the desired luminance levels. With precise beam control which ranges from 12° to 40°, the ALPHA Track Light serves to focus the viewer's attention onto a piece of art work or display.
Verified by Techlume Australia on 24/10/2023
- Material Specifications
- HousingDie-Cast Aluminium
- FinishWhite or Black
- DimensionsHead: 72mm(Dia) x 137mm (L)
- DimensionsBase: 148mm(L) x 54mm(W) x 37mm(H)
- Adjustment90° tilt, 355° rotation
- Ingress ProtectionIP20
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyIntegrated Tridonic 15W Driver 350mA, Non-Dim
- System Watts15W
- OptionsDALI available
- Input Voltage240V
- Operating Temperature (Ta)-20ºC ~ +40ºC
- Connection Method3-Circuit Track Connector. Sold Separately
- Optic Specifications
- Light Source13W Citizen LED
- Delivered Lumens1,027lm (3000K)
- Delivered Lumens1,191lm (4000K)
- EfficacyUp to 79lm/W
- Beam Angle40° (12°/ 25° options)
- CRIRa >91
- R9 Value>56
- UGR<19
- Colour DeviationSDCM <3
- Reported L70 (Hours)> 54,000 Hrs
Variations
- LC5192 ALPHA 13W Tracklight, White, 40°, Non-Dim, 3000K, 1,027lm
- LC5193 ALPHA 13W Tracklight, White, 40°, Non-Dim, 4000K, 1,191lm
- LC5194 ALPHA 13W Tracklight, Black, 40°, Non-Dim, 3000K, 1,027lm
- LC5195 ALPHA 13W Tracklight, Black, 40°, Non-Dim, 4000K, 1,191lm
Resources
- Data Sheet
-
LC5194
-
LC5195

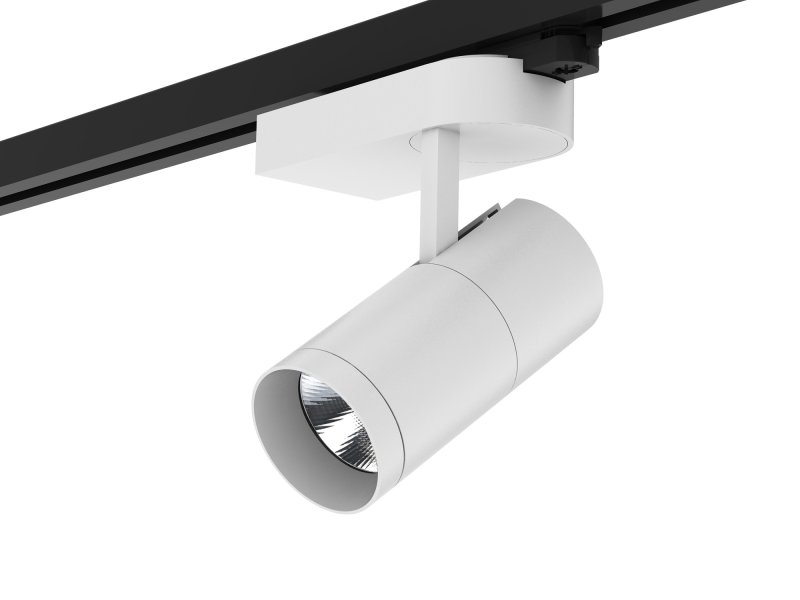

This 13W ALPHA Track Light is sleek and modern with a matt finish. Mounted using a 3-phase track, ALPHA LED Track Lights provide a stylish and adjustable solution for lighting your retail or residential space.
