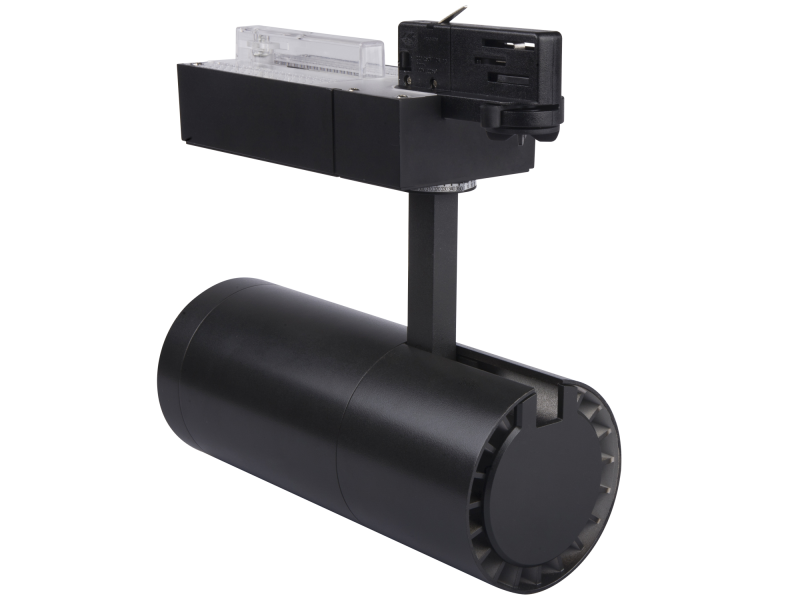

ALPHA 25W
Adjustable Tracklight
Track lighting is used because of its flexibility in positioning fittings, and removing or adding fittings to achieve the correct luminance levels. It can focus the viewer's attention onto a piece of art work or display.
Alpha S perfectly combines design and function. Optimized passive cooling system ensures low temperature and long lifetime of LED.
The Alpha Track Light is an architectural design, a high lighting quality, with optimised efficiency. Ideal for museums, art galleries, restaurants and reception areas.
- Material Specifications
- MaterialAluminium
- FinishPowder Coat
- DimensionsHead 72mm Dia x 137mm(L)
- Adjustment90° tilt, 359° rotation
- Application3-Wire Track
- OptionsBlack Ring, Oblique Ring
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyIntegrated Tridonic Driver 700mA, Non-Dimmable
- Input Voltage240V
- Connection Method3 Circuit Track. Sold Separately
- Optic Specifications
- Light Source28W Citizen LED
- Beam Angle40° (12°/18°/ 25° options)
- CRI90Ra
- Colour DeviationSDCM ≤ 3
- Reported L70 (Hours)> 54,000 Hrs
- LC5100-40 ALPHA 25W Tracklight, White, 40°, Non-Dim, 3000K, 1900lm
- LC5101-40 ALPHA 25W Tracklight, White, 40°, Non-Dim, 4000K, 2000lm
- LC5106-40 ALPHA 25W Tracklight, Black, 40°, Non-Dim, 3000K, 1900lm
- LC5106-18 ALPHA 25W Tracklight, Black, 18°, Non-Dim, 3000K, 1900lm
- LC5186-40 ALPHA 25W Tracklight, Black, 40°, Non-Dim, 4000K, 2000lm
