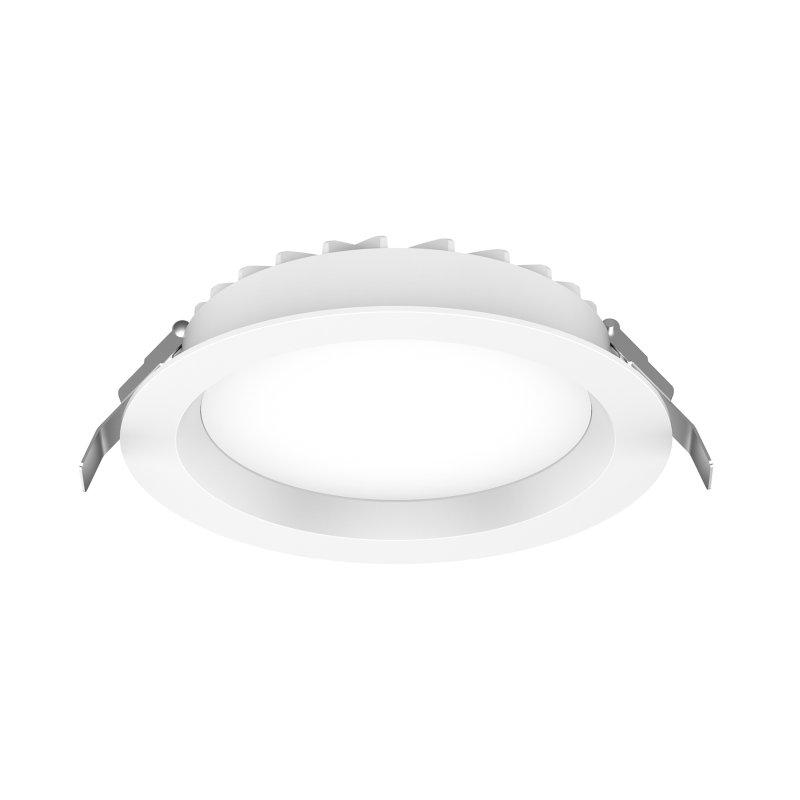

KARGO 25W
LED Recessed Downlight 160mm Cutout
The KARGO 25W downlight is phase dimmable, constructed with a thermal heatsink included to ensure the downlight disperses any heat keeping it cool to touch. Used by builders, developers and a favourite with electricians.
KARGO 25W LED Downlight adopts a high lumen SMD LED, and PMMA diffuser with even light output.
Verified by Techlume Australia on 27/07/2023
- Material Specifications
- MaterialHigh Grade Aluminium + PC Reflector
- ColourMatt White (RAL9016)

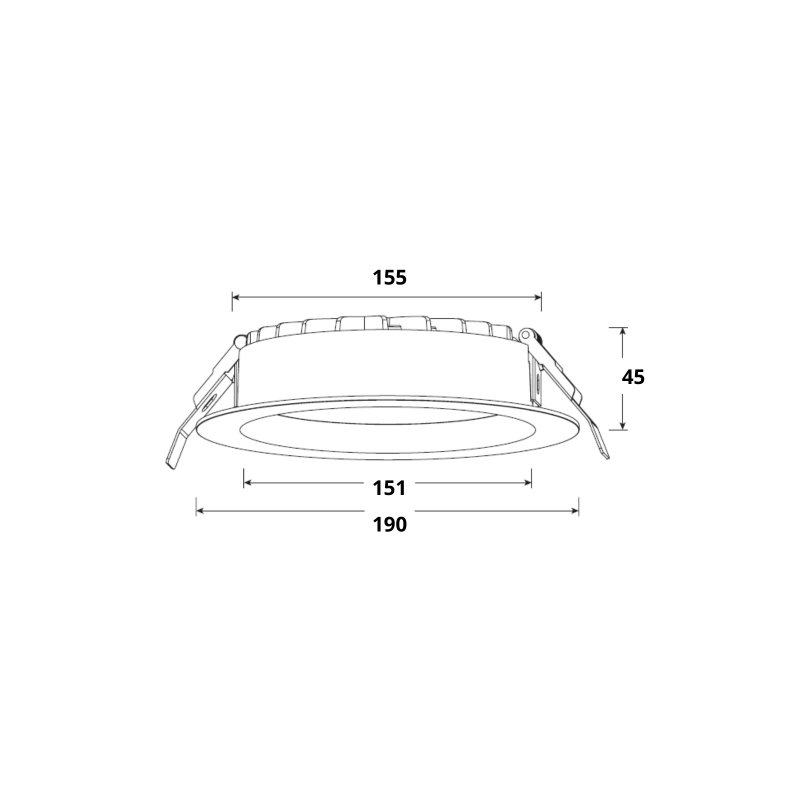

- Dimensions190mm Face Dia x 45mm (H)
- Cutout160mm (Dia)
- Ingress ProtectionIP54
- Impact RatingIK06
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyRemote Driver 300mA, Phase Dim
- System Watts23.1W - 24.4W
- Thermal TestingCompliant with IC-4 Classification
- Operating Temperature (Ta)-20°C to +45°C
- Input Voltage240V, 50/60Hz
- Connection MethodAustralian 2-Pin Plug & 0.6m Lead
- Optic Specifications
- Light Source25W SMD 2835 LED
- Delivered Lumens2243lm (3000K)
- Delivered Lumens2533lm (4000K)
- Delivered Lumens2435lm (5500K)
- EfficacyUp to 109.9lm/W
- CRI>82Ra
- Beam Angle100°
- Reported L90 (Hours)> 54,000 Hrs
Variations
- LC3641 KARGO 25W Downlight, White, 100°, Phase Dim, Tri Colour
- LC3641B KARGO 25W Downlight, Black, 100°, Phase Dim, Tri Colour
- LC3641D KARGO 25W Downlight, White, 100°, DALI, Tri Colour
Resources
- Data Sheet
-
LC3641
