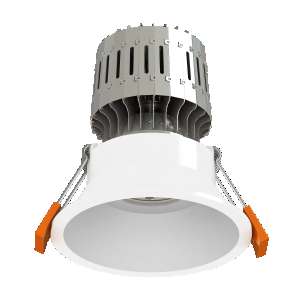

ROSCO 10W
Gimbal Slotted Downlight
The ROSCO 10W Gimbal Slotted Downlight is constructed with a sleek design for a high impact light distribution, adopting a high lumen COB LED and PMMA diffuser with even light output. With a round 84mm cutout, it is suitable for a range of different commercial applications including hotels, museums and art galleries. Beautiful light with minimal glare - a favourite with architects and interior designers.
- Material Specifications
- MaterialHigh Grade Aluminum + Reflector
- ColourMatt White
- Dimensions91.5mm Face Dia x 61mm (H)
- Cutout84mm (Dia)
- Adjustment30° Gimbal
- Ingress ProtectionIP44
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyRemote Driver, Phase Dimmable, 230mA
- DimmingRange 8% - 100%
- Thermal TestingCompliant with IC-4 Classification
- Operating Temperature (Ta)-20°C to +45°C
- Input Voltage240V, 50Hz
- Connection MethodAustralian 2-Pin Plug & 1.2m Lead
- Optic Specifications
- Light SourceAC Hongli 10W COB LED
- Delivered Lumens760lm
- CRI80Ra
- Beam Angle36°
- Colour DeviationSDCM <4
- Rated Lifetime (L70B20)50,000 Hrs
Variations
- LC3515 ROSCO 10W Gimbal Slotted Downlight, White, Phase Dim, 3000K
- LC3515D ROSCO 10W Gimbal Slotted Downlight, White, DALI, 3000K
- LC3516 ROSCO 10W Gimbal Slotted Downlight, White, Phase Dim, 4000K
