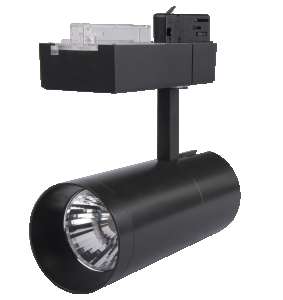

MODIS-S 10W
Tracklight
The MODIS series is a modular lighting series with an exquisite design and UGR19 anti-glare feature. It supports six installation methods, including recessed, canopy ceiling, surface-mounted, pendant, and track options. With four size choices (Ø55mm, Ø65mm, Ø85mm, Ø100mm), it uses a Bridgelux COB light source, achieving 120lm/W efficiency. It offers interchangeable CCT and wattage (except Ø55mm), multiple reflector angles, and flicker-free drivers. Ideal for commercial and residential spaces, such as hotels, offices, museums, and homes.
- Material Specifications
- MaterialAluminium & Transparent Tempered Glass
- MountingAdjustable Track Mount
- ColourBlack RAL9005/ White RAL9016
- Dimensions65mm (Dia) x 253mm (H)
- Ingress ProtectionIP20
- Warranty5 Year Replacement
- Electrical Specifications
- Power SupplyIntegral Driver, 500mA, Phase Dimmable
- Connection MethodTerminal Block in base
- Input Voltage240V
- Optic Specifications
- Light SourceTridonic 10W LED
- Delivered Lumens740-1200lm
- CRI90Ra
- Colour DeviationSDCM ≤ 5
- Rated Lifetime (L70B20)50,000 Hrs
Variations
- LC1494B MODIS-S 10W Tracklight, Black, 36°, Phase Dim, Tri-Colour, 740-1200lm
- LC1494W MODIS-S 10W Tracklight, White, 36°, Phase Dim, Tri-Colour, 740-1200lm
